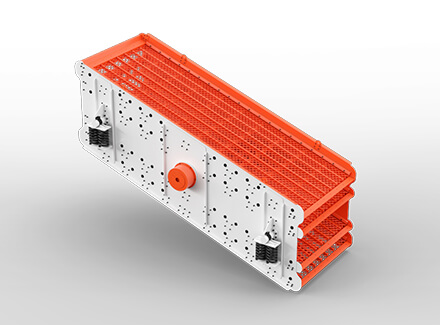

Name: Circular Vibrating Screen
Brand: wordpress
Availability: InStock

Introduction

Circular vibrating screen is a kind of doing a circular vibrating, numerous layers and high efficiency vibrating screen. Round vibrating screen takes a cylinder type eccentric shaft vibration exciter and partial block to adjust the amplitude, material sieve drip line, which has the advantage of reliable structure, strong exciting force, high screen efficiency, low noise, durable usage, easy maintenance and security for the mining operator and which also can be used in the classifying of the products such as mining, building material, transportation, energy saving and chemical industry.

It is mainly composed of screen box, exciter, suspension (or support) device and motor. The electric motor through V-belt driven exciter Spindle, due to the unbalanced centrifugal force of inertia of the weights on the exciter, screen box were vibrating. Change the exciter eccentric weight, obtain different amplitude.

The Features of Vibrating Feeder:

1. Strong vibration of the screen box, can reduce the material clogging the sieve, sieve has high screening efficiency and productivity.

2. Structure is simple and convenient, which is easy to replaceable screen surface.

3. Circular vibrating screen adopts cylinder eccentric shaft vibration exciter and partial block to adjust the amplitude, and easy maintenance.

4. Circular vibrating screen spring steel woven mesh or punching sieve, long service life, is not easy to stop up the hole.

5. Circular vibrating screen with rubber isolation spring, long life, low noise, and smooth over the resonance region.

Technical data

Model	Sieve Layer	Sieve Area (㎡)	Mesh Size (mm)	Max.Feeding Size (mm)	Processing capacity (m³/h)	Vibrating Frequency (r/min)	Double Amplitude (mm)	Power (kw)	Sieve Obliquity (°)	Sieve Specification (mm)	Dimensions (L×W×H) (mm)
2YK1230	2	7.2	4-50	200	12-78	970	6	6P 7.5	20	1200×3000	3530×1885×920
3YK1230	3	10.8	4-50	200	13-80	970	6	6P 7.5	20	1200×3000	3675×1885×1320
2YK1237	2	8.88	4-50	200	15-86	970	6	6P 7.5	20	1200×3700	4230×1990×920
3YK1237	3	13.32	4-50	200	16-90	970	6	6P 7.5	20	1200×3700	4375×1990×1320
2YK1548	2	14.4	5-50	200	22.5-162	970	6	6P 11	20	1500×4800	5355×2195×1030
3YK1548	3	21.6	5-50	200	22.5-162	970	6	6P 15	20	1500×4800	6055×2195×1740
4YK1548	4	28.8	5-50	200	22.5-162	970	6	6P 18.5	20	1500×4800	6195×2195×2120
2YK1854	2	19.44	5-80	200	32-312	970	6	6P 22	20	1800×5400	6515×2555×1370
3YK1854	3	29.16	5-80	200	32-312	970	6	6P 22	20	1800×5400	6655×2555×1750
4YK1854	4	38.88	5-80	200	32-336	970	6	6P 22	20	1800×5400	6790×2555×2130
2YK2160	2	25.2	5-100	200	50-475	970	6	6P 30	20	2100×6000	7200×2945×1580
3YK2160	3	37.8	5-100	200	50-475	970	6	6P 30	20	2100×6000	7340×2945×1980
4YK2160	4	50.4	5-100	200	50-497	970	6	6P 37	20	2100×6000	7490×2945×2380
2YK2460	2	28.8	5-100	200	65-550	970	6	6P 30	20	2400×6000	7200×3200×1580
3YK2460	3	43.2	5-100	200	70-620	970	6	6P 37	20	2400×6000	7340×3200×1980
4YK2460	4	57.6	5-100	200	80-680	970	6	6P 45	20	2400×6000	7490×3200×2380
2YK2866	2	31	5-100	200	70-650	970	6	6P 37	20	2800×5600	6950×3610×1790
3YK2866	3	47	5-100	200	80-700	970	6	6P 45	20	2800×5600	7130×3610×2270
4YK2866	4	62	5-100	200	90-750	970	6	6P 55	20	2800×5600	7300×3610×2750
2YK2873	2	39.2	5-100	200	70-680	970	6	6P 37	20	2800×6500	7850×3587×1790
3YK2873	3	58.8	5-100	200	80-720	970	6	6P 45	20	2800×6500	8025×3587×2270
4YK2873	4	58.8	5-100	200	90-950	970	6	6P 55	20	2800×6500	8200×3587×2750
